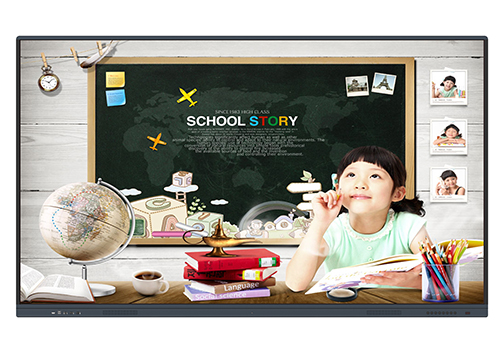

ZY intelligent touch all in one machine
Product parameters：
This machine uses the excellent performance of the Android conference system and today's most cutting-edge operating system Windows7/10 perfect combination, integrated wireless screen transfer, computer screen projection, paperless conference and other functions to achieve a three-dimensional conference service, multi-touch, can be instinctive Operations such as zooming, rotating and annotating pictures, videos, web pages, documents, etc. naturally and naturally make the touch more brisk and smooth, and elevate the touch experience to a whole new level, fully embodying the unique charm of human-computer interaction.
Online consultation Tel：+86-0755-21002123
product description
This machine adopts the excellent performance of the Android 6.0 or 8.0 conference system and the most cutting-edge operating system Windows 7/10. It integrates wireless screen transmission, computer screen projection, paperless conference and other functions to achieve three-dimensional conference service, multi-point Touch can instinctively and naturally zoom, rotate and annotate pictures, videos, web pages, documents, etc., making the touch more brisk and smooth, and elevating the touch experience to a whole new level, fully embodying the human-computer interaction unique charm.

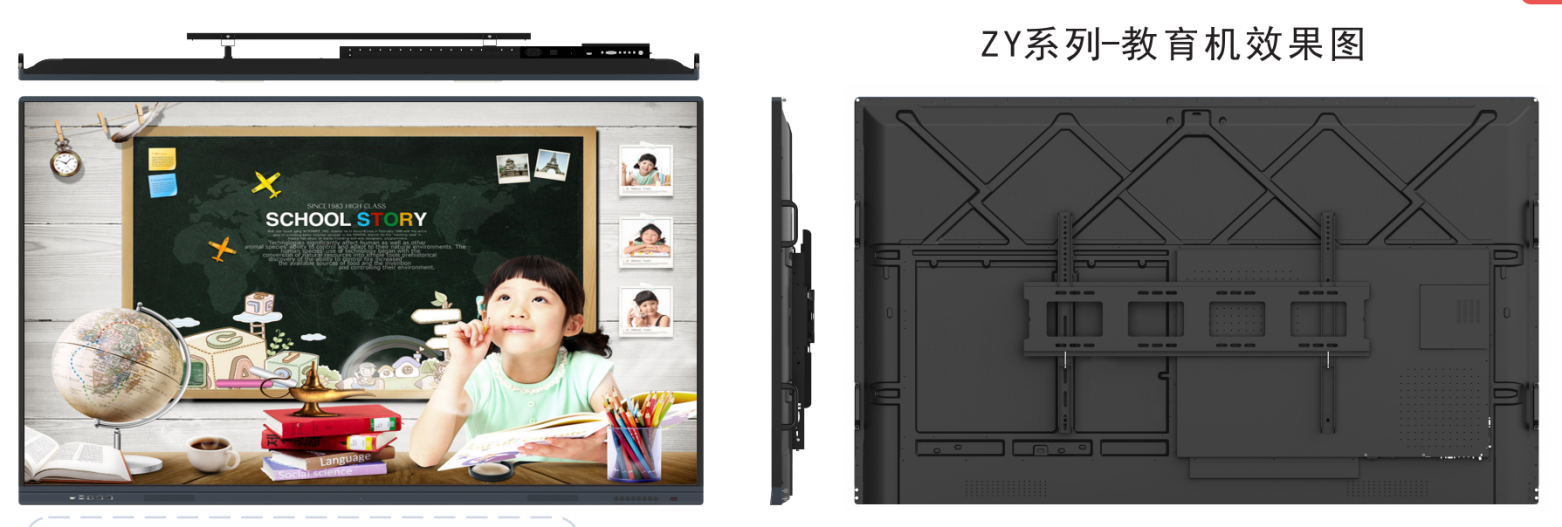

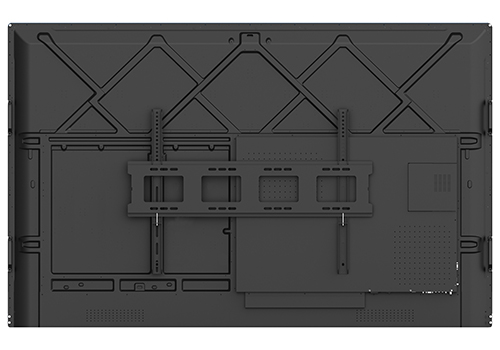

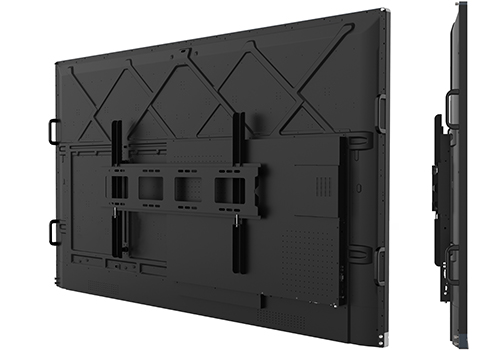

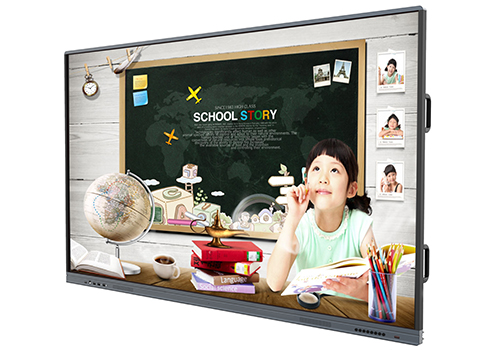

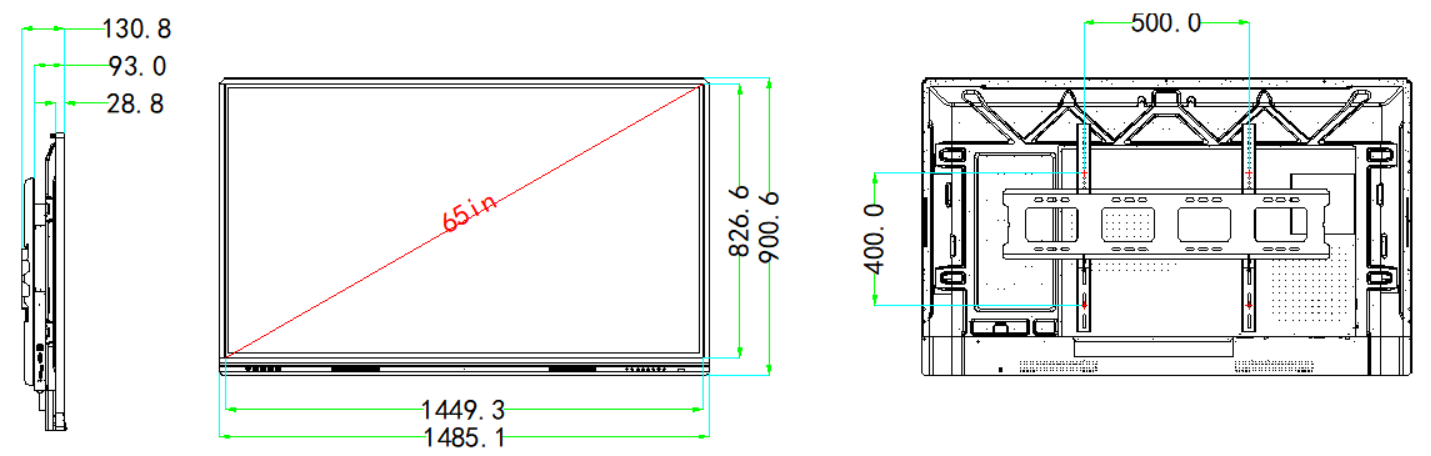

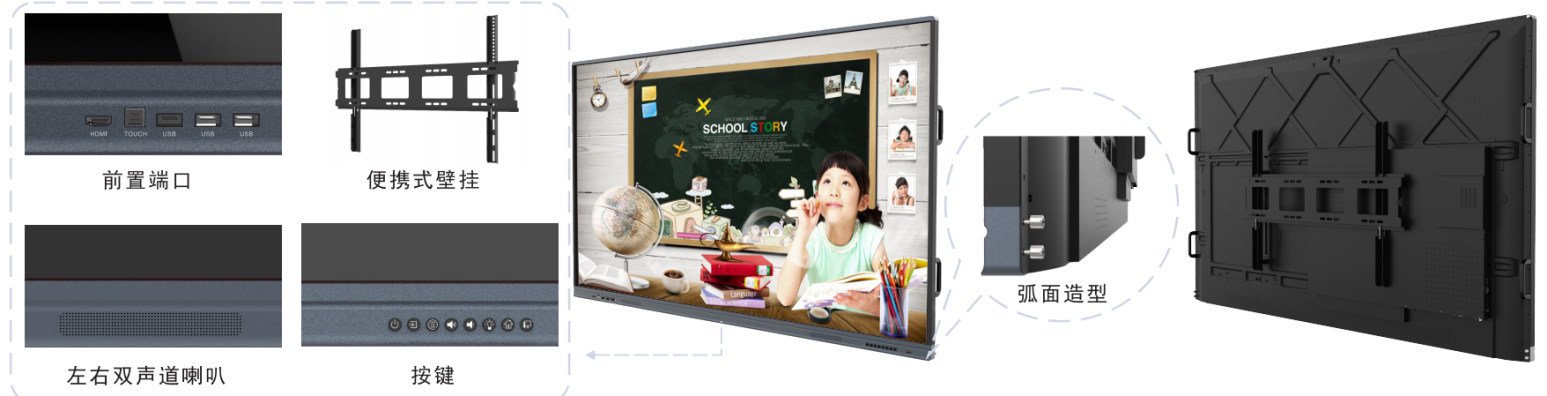

Overall appearance
Precautions
1. Before operating and using the product, read the safety and operating instructions carefully. And please keep this manual for future use.
2. All warning signs in the product and product usage guidelines should be followed.
3. The buttons on the panel and the remote control are unipolar switches. When the power is turned on, press this button to switch between power on or standby; the "O" on the back panel of the all-in-one machine is an omnipolar switch, press "O" on the back panel turns off the power, and then press "I" to turn on the power. All-pole power switch; a manual mechanical switch that can disconnect all poles of the power grid except for the protective grounding conductor. The contact distance of each pole of the all-pole power switch should be at least 3mm, and the symbol "O" can only be used for the "off" position mark of the all-pole power switch. (Note: If the all-in-one machine does not have an all-pole switch, the power plug connected to the all-in-one machine is used as a device to disconnect the power, and the power plug should be easy to plug and unplug.)
4. When there is an abnormal sound or smell inside the machine, please turn off the power and unplug it immediately. If it is confirmed to be abnormal, do not continue to use it, and ask the product maintenance personnel for inspection.
5. If the all-in-one is not used for a long time, turn off the power of the all-in-one, unplug the power plug, and disconnect the antenna from the machine during the thunderstorm season.
6. You cannot watch TV during a thunderstorm, and you must unplug the power plug and antenna before the thunderstorm arrives to prevent lightning strikes.
7. Flammable and explosive materials, candles, electric stoves, bulbs, etc. cannot be placed on or near the machine to avoid accidents.
8. Be careful that liquids and metals enter the body of the integrated machine. If liquids or metals fall into the machine, it must not be turned on again and should be handled by professionals as soon as possible.
9. Do not use chemical reagents to wipe the machine. Solvents may deteriorate the casing and damage its painted surface. If there is dust or dirt, wipe it off with a damp cloth ten minutes after turning off the machine. The display can be gently wiped with a clean soft cloth. Before cleaning, unplug the all-in-one from the wall outlet. Do not use liquid cleaners or aerosol cleaners.
10. Pay attention to water and moisture. Do not use this product in or near watery places, such as: bathtubs, sinks, kitchens, sinks, laundry tubs, wet basements, or near swimming pools.
11. The equipment should not be exposed to water droplets or splashes, and no objects filled with liquids such as vases should be placed on the equipment.
12. The plug should be easy to plug and unplug and ground. This product can be equipped with a polarized tine AC plug (one tine of the plug is wider than the other tine, this plug can only be inserted into the power socket from one direction, which is a safety feature of the plug). If you cannot fully insert the plug into the socket, please try another direction. If the plug still cannot be inserted, please contact an electrician to replace the old socket without damaging the safety features of the polarized plug. Additional warning: This product is equipped with a three-wire grounding plug, which has a grounding pin and can only be inserted into a grounded power outlet.
13. Do not place this product on an unstable cart, shelf, tripod, bracket or table, otherwise it may cause the all-in-one to overturn. When this product is placed on a trolley, you should be careful when moving it. Quick stop, excessive force or uneven surface may cause the trolley and the all-in-one to tip over.
14. The slots and openings on the equipment provide ventilation to ensure reliable operation of the product and prevent overheating. Ventilation holes should not be covered with articles such as newspapers, tablecloths and curtains to prevent ventilation. For adequate ventilation, ensure that there is a certain gap around the product.
15. This product can only be powered by the power supply type and power supply voltage indicated on the label. If you are not sure about the type and voltage of your home's power supply, please contact the product dealer or local power supply company.
16. The power cord in the accessories of this product is a three-plug power cord (with grounding protection). Please make sure that the grounding terminal of the wall socket is well grounded during installation. When wiring the power cord, avoid the passage to avoid being stepped on, and avoid the place squeezed by other objects.
17. It is forbidden to push any type of debris into the product through any openings, otherwise they may touch dangerous voltage points or protruding parts, which may cause fire or electric shock.
18. Do not repair this product without authorization. Unauthorized opening or removal of the cover may expose you to dangerous voltage or other dangers. If there is any maintenance, please contact the maintenance personnel designated by the manufacturer.
19. The installation of this product should follow the manufacturer's operating instructions, and only use the installation accessories recommended by the manufacturer.
20. The wall mount (if any) of this product is only suitable for normal cement walls, solid walls, wooden walls that can bear the weight of the machine more than 3 times, for special walls (referring to steel structure walls, hollow structure walls and glass The manufacturer recommends that you must consider the safety of the product hanging or hoisting, and you can operate it after ensuring that it is correct. The installation of such special materials must be carried out by professionals, and the manufacturer is not responsible for such installation.
21. The important content with the exclamation symbol on the rear nameplate means: if there are important safety components that need to be replaced during maintenance (components with this symbol next to the components on the circuit board), only the safety test documents must be used If there is no replacement of the same components, please ask the manufacturer.
22. The protective grounding of the accessible conductive parts and output sockets of Class I equipment should be reliably connected to the protective grounding terminal in the equipment.
23. Do not cover the ventilation holes of this equipment with anything, such as table cloth, meal, curtain cloth, etc.
24. Do not place any burning (burning flame) objects on the machine, such as burning candles.
25. When you want to move this equipment from a hot place to a cold place, you must turn on the power before operation to fully preheat it.
26. This product uses power plugs and appliance couplers as disconnect devices, which should be easily accessible.
27. Please make sure that the device is installed in a suitable location, such as on a wall or hanging on the ceiling. Please install it under the guidance of a professional.
Technical parameters
|
Product Series
|
Product Series |
H1 Series |
|
Model |
55 |
|
|

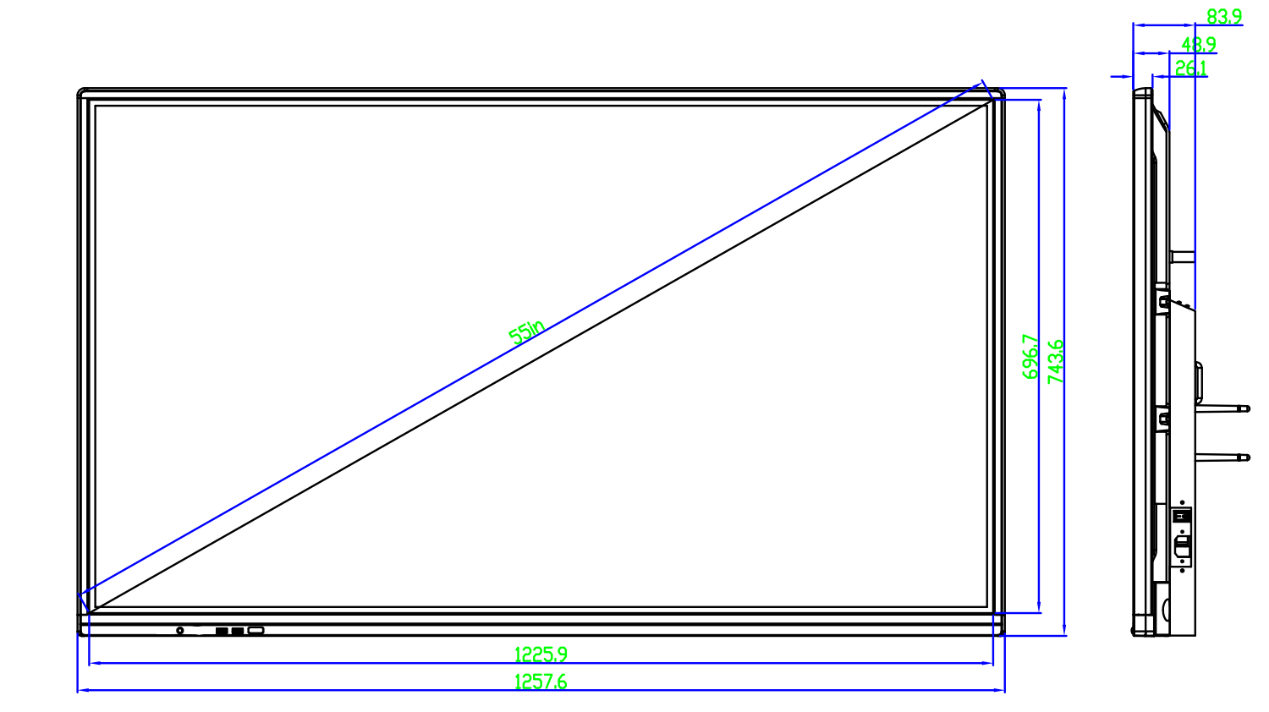

Display dimensions (mm) |
1209.6(H)*680.4(V) |
|
|
Panel parameters
|
Screen Type |
LED backlight |
|
Point distance |
mm x 0.372mm 0.372 |
|
|
Color display |
bit/16.7Billion 8 |
|
|
Screen supplier |
LGD/SDC/BOE/AUO |
|
|
Maximum resolution |
3840*2160 |
|
|
Refresh frequency |
60Hz |
|
|
Brightness |
350 cd/㎡ |
|
|
Contrast |
1200:1(Typ.) Transmission |
|
|
Perspective |
178°/ 178° |
|
|
Life span |
>50000 hours |
|
|
Touch system
|
Touch Principle |
Infrared touch |
|
Response time |
ms ≤12 |
|
|
Identification points |
10 touch |
|
|
Writing Accuracy |
±2 mm(90% middle touch area) |
|
|
Touch resolution |
32768×32768 |
|
|
Drive system parameters
|
Chip |
MSD848(8386) |
|
CPU |
Cortex A73*2A53*2 1.5 GHz |
|
|
GPU |
T720MP2 |
|
|
RAM |
3G DDR3 |
|
|
Flash |
16G or 32 GB |
|
|
SD card |
Support MAX 128GB SD card |
|
|
System |
Android6.0 or 8.0 |
|
|
Side interface
|
USB2.0 |
2 roads |
|
RS232 |
Road 1 |
|
|
TF CARD |
Road 1 |
|
|
HDMI IN |
Road 1 |
|
|
SPDIF OUT |
Road 1 |
|
|
Lower interface |
USB TOUCH |
Road 1 |
|
HDMI IN |
Road 1 |
|
|
RJ45 |
Road 1 |
|
|
VGA AUDIO |
Road 1 |
|
|
VGA IN |
Road 1 |
|
|
RF IN |
Road 1 |
|
|
AV IN |
Road 1 |
|
|
AV OUT |
Road 1 |
|
|
Ypbpr IN |
Road 1 |
|
|
EARPHONE |
Road 1 |
|
|
Front port |
USB 2.0 |
2 roads |
|
PC interface (for reference only)
|
HDMIOUT |
Road 1 |
|
VGA OUT |
Road 1 |
|
|
USB interface |
Route 4(2 USB 2.0/2 USB 3.0) |
|
|
RS232 |
Road 1 |
|
|
RJ45 network card interface |
Road 1 |
|
|
AUDIO-OUT interface |
Road 1 |
|
|
MIC-IN interface |
Road 1 |
|
|
operating system |
Win7 Professional Edition (not activated) |
|
|
other functions
|
Image format |
JPEG,PNG,BMP |
|
Video coding protocol |
VP9, HEVC/H.265, MPEG1/2, MPEG4, DivX3.11, DivX4.12, DivX5.X, DivX 6, XviD, Sorenson H.263, H.263, H.264, MVC, AVS, AVS+, WMV3, VC1, Motion JPEG, VP8, RV30/RV40, |
|
|
Audio Decoding Protocol |
MPEG1/2Layer1, MPEG1/2Layer2, MPEG1/2/2.5Layer3, AC3, EAC3, AAC, HEAAC, WMA, WMA 10Pro M0, WMA, WMA 10Pro M1, WMA, WMA 10Pro M2, VORBIS, DTS, LPCM, IMA-ADP CM MS-ADP CM, G711A/mu-law, LBR, FLAC, DRA |
|
|
Writing fluently |
Smooth and smooth writing experience, touch delay <12 MS |
|
|
Touch menu |
The menu, signal source switch, sound, brightness, TV all function control are realized by hand gesture to screen touch menu menu of the screen (touch menu) |
|
|
Intelligent signal switching |
The device will automatically identify and switch to the corresponding video, audio, touch synchronous switch to the corresponding signal source channel |
|
|
Temperature detection function |
Display the internal temperature of the machine on the menu interface of the integrated machine, and automatically shut down when the internal malfunction of the machine exceeds the standard |
|
|
Gesture Wipe Function |
Wipe the text and patterns on the screen with gestures |
|
|
Two-way control function |
Touch the screen to control the computer, convenient and fast |
|
|
Wireless screen function |
You can project the contents of your computer onto the screen without inserting wires |
|
|
Zoom, zoom, drag |
Using multi-touch technology, arbitrarily change the size of the picture, move the position of the picture at will |
|
|
structure size
|
Free of packaging (mm) |
1258.6×770.6×87.8 mm |
|
Packaged (mm) |
1355×885×200 mm |
|
|
Total Weight
|
Net |
26.5 Kg |
|
Gross |
Kg 34Kg±1.5 |
|
|
Audio parameters |
Audio Power |
(8Ω10W)*2, stereo |
|
Power parameters
|
Rated power consumption |
≤250 W (including OPS) |
|
Standby power |
≤0.5 W |
|
|
Input power |
V AC 50/60Hz 100-240 |
|
|
working environment
|
Working temperature |
-10℃-50℃ |
|
Working humidity |
10%-90% |
|
|
Storage temperature |
-20℃-60℃ |
|
|
Storage humidity |
10%-90% |
|
|
Its it
|
Packing methods |
Anti-impact corrugated boxes |
|
Toughened glass |
3 mm fully toughened glass, anti-scratch, anti-impact, anti-crack, |
|
|
Anti-glare glass |
||
|
Machine accessories |
Power cord |
Article 1 |
|
Remote control |
1 |
|
|
Battery |
1 pair |
|
|
Handwriting |
2 |
|
|
Retractable whip |
1 branch |
|
|
Wall Mounting Kit |
1 set |
|
|
Certificate |
1 |
|
|
Warranty card |
1 |
|
|
Main board WiFi antenna |
1 branch |
|
Product Series |
Product Series |
ZY Series |
|
Model |
65 |
|
|
Display dimensions (mm) |
mm 1428.48(H)×803.52 mm (V) |
|
|
Panel parameters |
Screen Type |
DLED backlight |
|
Point distance |
mm x 0.372mm 0.372 |
|
|
Color display |
bit/16.7Million 8 |
|
|
Screen supplier |
LGD/SDC/BOE/AUO |
|
|
Maximum resolution |
3840*2160 |
|
|
Refresh frequency |
60HZ |
|
|
Brightness |
350 cd/㎡ |
|
|
Contrast |
1200:1(Typ.) Transmission |
|
|
Perspective |
178°/ 178° |
|
|
Life span |
>50000 hours |
|
|
Touch System |
Touch Principle |
Infrared touch |
|
Response time |
4 ms~12 ms |
|
|
Identification points |
10 touch |
|
|
Touch Power |
USB |
|
|
Touch resolution |
x 32768 32768 |
|
|
Driving system parameters |
Chip |
MSD848(8386) |
|
CPU |
Cortex A73*2A53*2 1.5 GHz |
|
|
RAM |
3G DDR3 |
|
|
Flash |
16G or 32 GB |
|
|
System |
Android 6.0 or 8.0 |
|
|
Input-output interface |
RS232 |
Road 1 |
|
YPBPR IN |
Road 1 |
|
|
HDMI IN |
2 roads |
|
|
RJ45 |
2 roads |
|
|
Touch usb |
Road 1 |
|
|
VGA IN |
Road 1 |
|
|
VGA AUDIO IN |
Road 1 |
|
|
USB 2.0 |
2 roads |
|
|
AV IN |
Road 1 |
|
|
RF-IN |
Road 1 |
|
|
Output Interface |
coax OUT |
Road 1 |
|
EARPHONE |
Road 1 |
|
|
AV OUT |
Road 1 |
|
|
Front port |
Touch USB *1,USB2.0*3,HDMI IN*1 |
|
|
Front key |
POWER 、Input 、Menu 、V+, V-、ECO 、Home |
|
|
Operating system |
WIN7( Presentation Edition) |
|
|
Other functions |
Audio and video format |
3GP, 3G2, AVI, FLV, F4V, OGG, MP4, MOV, TS, M2TS, M2T, MTS, TP, TRP, M2P, MKV, |
|
VOB, DAT, M4V, ASF, WEBM, 3GP, MP3, WAV, WMA, MPEG, PCM |
||
|
Video coding protocol |
H264, H265, MPEG2, VC1, VP6, VP8, VP9, MVC, DIVX, MJPEG, AVS, AVS+ |
|
|
Audio Decoding Protocol |
WMA, MP3, WAV, AAC, AC3, EAC3, Vorbis, FLAC, APE, TrueHD, DRA, DTS, DTSHD |
|
|
Subtitle and caption format |
srt, sub, smi, sami, ssa, aas, lrc, idx+sub, PGS, MKV Internal subtitle, TS Internal |
|
|
subtitle (dvb subtitle), VOBSub (idx +sub) |
||
|
Writing fluently |
Smooth and smooth writing experience, touch delay <8 MS |
|
|
Touch menu |
The menu, signal source switch, sound, brightness, TV all function control are realized by hand gesture to screen touch menu menu of the screen (touch menu) |
|
|
Intelligent signal switching |
The device will automatically identify and switch to the corresponding video, audio, touch synchronous switch to the corresponding signal source channel |
|
|
Temperature detection function |
Display the internal temperature of the machine on the menu interface of the integrated machine, and automatically shut down when the internal malfunction of the machine exceeds the standard |
|
|
Gesture Wipe Function |
Wipe the text and patterns on the screen with gestures |
|
|
Two-way control function |
Touch the screen to control the computer, convenient and fast |
|
|
Wireless screen function |
You can project the contents of your computer onto the screen without plugging in (optional) |
|
|
Zoom, zoom, drag |
Using multi-touch technology, arbitrarily change the size of the picture, move the position of the picture at will |
|
|
Structural dimensions |
No packing |
1485.1(L )*93(T)*900(H) mm.6 |
|
Packing |
1653*235*1037 mm |
|
|
Total weight |
Net |
47.8 Kg |
|
Gross |
61.8 Kg |
|
|
Audio parameters |
Audio Power |
(8Ω10W)*2, stereo surround sound |
|
Power supply parameters |
Rated power consumption |
W ≦180 |
|
Standby power |
W <1 |
|
|
Input power |
VAC 50/60HZ 100-240 |
|
|
Working environment |
Working temperature |
-10℃-50℃ |
|
Working humidity |
10%-90% |
|
|
Storage temperature |
-20℃-60℃ |
|
|
Storage humidity |
10%-90% |
|
|
Other |
Packing methods |
Wallen carton |
|
Toughened glass |
4 mm fully toughened glass, anti-scratch, anti-impact, anti-crack, |
|
|
Anti-glare glass |
||
|
Relevant annexes |
Power cord, remote control, whiteboard pen, certificate |
|
Product Series |
Product Series |
ZY Series |
|
Model |
75 |
|
|
Display dimensions (mm) |
mm 1649.66(H)×927.936 mm (V) |
|
|
Panel parameters |
Screen Type |
DLED backlight |
|
Point distance |
0.429 mm x 0.429mm |
|
|
Color display |
bit/16.7Million 8 |
|
|
Screen supplier |
LGD/SDC/BOE/AUO |
|
|
Maximum resolution |
3840*2160 |
|
|
Refresh frequency |
60HZ |
|
|
Brightness |
350 cd/㎡ |
|
|
Contrast |
1200:1(Typ.) Transmission |
|
|
Perspective |
178°/ 178° |
|
|
Life span |
>50000 hours |
|
|
Touch System |
Touch Principle |
Infrared touch |
|
Response time |
4 ms~12 ms |
|
|
Identification points |
10 touch |
|
|
Touch Power |
USB |
|
|
Touch resolution |
x 32768 32768 |
|
|
Driving system parameters |
Chip |
MSD848(8386) |
|
CPU |
Cortex A73*2A53*2 1.5 GHz |
|
|
RAM |
3G DDR3 |
|
|
Flash |
16G or 32 GB |
|
|
System |
Android 6.0 or 8.0 |
|
|
Input-output interface |
RS232 |
Road 1 |
|
YPBPR IN |
Road 1 |
|
|
HDMI IN |
2 roads |
|
|
RJ45 |
2 roads |
|
|
Touch usb |
Road 1 |
|
|
VGA IN |
Road 1 |
|
|
VGA AUDIO IN |
Road 1 |
|
|
USB 2.0 |
2 roads |
|
|
AV IN |
Road 1 |
|
|
RF-IN |
Road 1 |
|
|
Output Interface |
coax OUT |
Road 1 |
|
EARPHONE |
Road 1 |
|
|
AV OUT |
Road 1 |
|
|
Front port |
Touch USB *1,USB2.0*3,HDMI IN *1 |
|
|
Front key |
POWER 、Input 、Menu 、V+, V-、ECO 、Home |
|
|
Operating system |
WIN7( Presentation Edition) |
|
|
Other functions |
Audio and video format |
3GP, 3G2, AVI, FLV, F4V, OGG, MP4, MOV, TS, M2TS, M2T, MTS, TP, TRP, M2P, MKV, |
|
VOB, DAT, M4V, ASF, WEBM, 3GP, MP3, WAV, WMA, MPEG, PCM |
||
|
Video coding protocol |
H264, H265, MPEG2, VC1, VP6, VP8, VP9, MVC, DIVX, MJPEG, AVS, AVS+ |
|
|
Audio Decoding Protocol |
WMA, MP3, WAV, AAC, AC3, EAC3, Vorbis, FLAC, APE, TrueHD, DRA, DTS, DTSHD |
|
|
Subtitle and caption format |
srt, sub, smi, sami, ssa, aas, lrc, idx+sub, PGS, MKV Internal subtitle, TS Internal |
|
|
subtitle (dvb subtitle), VOBSub (idx +sub) |
||
|
Writing fluently |
Smooth and smooth writing experience, touch delay <8 MS |
|
|
Touch menu |
The menu, signal source switch, sound, brightness, TV all function control are realized by hand gesture to screen touch menu menu of the screen (touch menu) |
|
|
Intelligent signal switching |
The device will automatically identify and switch to the corresponding video, audio, touch synchronous switch to the corresponding signal source channel |
|
|
Temperature detection function |
Display the internal temperature of the machine on the menu interface of the integrated machine, and automatically shut down when the internal malfunction of the machine exceeds the standard |
|
|
Gesture Wipe Function |
Wipe the text and patterns on the screen with gestures |
|
|
Two-way control function |
Touch the screen to control the computer, convenient and fast |
|
|
Wireless screen function |
You can project the contents of your computer onto the screen without plugging in (optional) |
|
|
Zoom, zoom, drag |
Using multi-touch technology, arbitrarily change the size of the picture, move the position of the picture at will |
|
|
Structural dimensions |
No packing |
1707.1(L )*93.2(T)*1025.6(H) mm |
|
Packing |
mm 1873*270/1197 |
|
|
Total weight |
Net |
61.8 Kg |
|
Gross |
81.3 Kg |
|
|
Audio parameters |
Audio Power |
(8Ω10W)*2, stereo surround sound |
|
Power supply parameters |
Rated power consumption |
≦320 W |
|
Standby power |
W <1 |
|
|
Input power |
100V-240VAC,50/60Hz |
|
|
Working environment |
Working temperature |
-10℃-50℃ |
|
Working humidity |
10%-90% |
|
|
Storage temperature |
-20℃-60℃ |
|
|
Storage humidity |
10%-90% |
|
|
Other |
Packing methods |
Wallen carton |
|
Toughened glass |
4 mm fully toughened glass, anti-scratch, anti-impact, anti-crack, |
|
|
Anti-glare glass |
||
|
Relevant annexes |
Power cord, remote control, whiteboard pen, certificate |
|
Product Series |
Product Series |
ZY Series |
|
Model |
86 |
|
|
Display dimensions (mm) |
mm 1895.04(H)×1065.96 mm (V) |
|
|
Panel parameters |
Screen Type |
DLED backlight |
|
Point distance |
mm x 0.4935mm 0.4935 |
|
|
Color display |
bit/16.7Million 8 |
|
|
Screen supplier |
LGD/SDC/BOE/AUO |
|
|
Maximum resolution |
3840*2160 |
|
|
Refresh frequency |
60HZ |
|
|
Brightness |
350 cd/㎡ |
|
|
Contrast |
1200:1(Typ.) Transmission |
|
|
Perspective |
178°/ 178° |
|
|
Life span |
>50000 hours |
|
|
Touch System |
Touch Principle |
Infrared touch |
|
Response time |
4 ms~12 ms |
|
|
Identification points |
10 touch |
|
|
Touch Power |
USB |
|
|
Touch resolution |
x 32768 32768 |
|
|
Driving system parameters |
Chip |
MSD848(8386) |
|
CPU |
Cortex A73*2A53*2 1.5 GHz |
|
|
RAM |
3G DDR3 |
|
|
Flash |
16G or 32 GB |
|
|
System |
Android 6.0 or 8.0 |
|
|
Input-output interface |
RS232 |
Road 1 |
|
YPBPR IN |
Road 1 |
|
|
HDMI IN |
2 roads |
|
|
RJ45 |
2 roads |
|
|
Touch usb |
Road 1 |
|
|
VGA IN |
Road 1 |
|
|
VGA AUDIO IN |
Road 1 |
|
|
USB 2.0 |
2 roads |
|
|
AV IN |
Road 1 |
|
|
RF-IN |
Road 1 |
|
|
Output Interface |
coax OUT |
Road 1 |
|
EARPHONE |
Road 1 |
|
|
AV OUT |
Road 1 |
|
|
Front port |
Touch USB *1,USB2.0*3,HDMI IN *1 |
|
|
Front key |
POWER 、Input 、Menu 、V+, V-、ECO 、Home |
|
|
Operating system |
WIN7( Presentation Edition) |
|
|
Other functions |
Audio and video format |
3GP, 3G2, AVI, FLV, F4V, OGG, MP4, MOV, TS, M2TS, M2T, MTS, TP, TRP, M2P, MKV, |
|
VOB, DAT, M4V, ASF, WEBM, 3GP, MP3, WAV, WMA, MPEG, PCM |
||
|
Video coding protocol |
H264, H265, MPEG2, VC1, VP6, VP8, VP9, MVC, DIVX, MJPEG, AVS, AVS+ |
|
|
Audio Decoding Protocol |
WMA, MP3, WAV, AAC, AC3, EAC3, Vorbis, FLAC, APE, TrueHD, DRA, DTS, DTSHD |
|
|
Subtitle and caption format |
srt, sub, smi, sami, ssa, aas, lrc, idx+sub, PGS, MKV Internal subtitle, TS Internal |
|
|
subtitle (dvb subtitle), VOBSub (idx +sub) |
||
|
Writing fluently |
Smooth and smooth writing experience, touch delay <8 MS |
|
|
Touch menu |
The menu, signal source switch, sound, brightness, TV all function control are realized by hand gesture to screen touch menu menu of the screen (touch menu) |
|
|
Intelligent signal switching |
The device will automatically identify and switch to the corresponding video, audio, touch synchronous switch to the corresponding signal source channel |
|
|
Temperature detection function |
Display the internal temperature of the machine on the menu interface of the integrated machine, and automatically shut down when the internal malfunction of the machine exceeds the standard |
|
|
Gesture Wipe Function |
Wipe the text and patterns on the screen with gestures |
|
|
Two-way control function |
Touch the screen to control the computer, convenient and fast |
|
|
Wireless screen function |
You can project the contents of your computer onto the screen without plugging in (optional) |
|
|
Zoom, zoom, drag |
Using multi-touch technology, arbitrarily change the size of the picture, move the position of the picture at will |
|
|
Structural dimensions |
No packing |
1953.4(L )*93.2(T)*1164.4(H) mm |
|
Packing |
2135*270*1332 mm |
|
|
Total weight |
Net |
74.5 Kg |
|
Gross |
95.3 Kg |
|
|
Audio parameters |
Audio Power |
(8Ω10W)*2, stereo surround sound |
|
Power supply parameters |
Rated power consumption |
≦410 W |
|
Standby power |
W <1 |
|
|
Input power |
100V-240VAC,50/60Hz |
|
|
Working environment |
Working temperature |
-10℃-50℃ |
|
Working humidity |
10%-90% |
|
|
Storage temperature |
-20℃-60℃ |
|
|
Storage humidity |
10%-90% |
|
|
Other |
Packing methods |
Wallen carton |
|
Toughened glass |
4 mm fully toughened glass, anti-scratch, anti-impact, anti-crack, |
|
|
Anti-glare glass |
||
|
Relevant annexes |
Power cord, remote control, whiteboard pen, certificate |
|
Product Series |
Product Series |
98-inch meeting machine |
|
Model |
98 |
|
|
Display dimensions (mm) |
2159 mm ×1220.6 mm |
|
|
Panel parameters |
Screen Type |
LED backlight |
|
Point distance |
0.5622×0.5622 mm |
|
|
Color display |
bit/1.07Billion 10 |
|
|
Screen supplier |
LGD/SDC/BOE/AUO |
|
|
Maximum resolution |
3840*2160 |
|
|
Refresh frequency |
120 hZ |
|
|
Brightness |
cd/㎡500 |
|
|
Contrast |
1200:1(Typ.) Transmission |
|
|
Perspective |
178°/ 178° |
|
|
Life span |
>50000 hours |
|
|
Touch System |
Touch Principle |
Infrared touch |
|
Response time |
ms ≤12 |
|
|
Identification points |
10 touch |
|
|
Writing Accuracy |
±1 mm(90% middle touch area) |
|
|
Touch resolution |
32768×32768 |
|
|
Driving system parameters |
Chip |
MSD6A848EVC |
|
CPU |
Dual-core A73and dual-core A53 |
|
|
GPU |
G51MP |
|
|
RAM |
3G DDR3 |
|
|
Flash |
32GB |
|
|
SD card |
Support MAX 128GB SD card |
|
|
System |
Android 8.0 |
|
|
Input-output interface |
HDMI Input Interface |
×2 |
|
PC-VGA Input Interface |
×1 |
|
|
PC- Audio Input Interface |
×1 |
|
|
USB(2.0) Input interface |
×2+2(front) |
|
|
Touch USB Output Interface |
×1 Standard B Seat |
|
|
AV IN |
×1 |
|
|
MIC IN |
×1 |
|
|
Coaxial output |
×1 |
|
|
Headphone output interface |
×1 |
|
|
RJ45 interface input interface |
×1 |
|
|
R232 control interface |
×1 |
|
|
SD slot |
×1 |
|
|
Built-in WIFI |
×3 |
|
Power supply parameters |
Rated power consumption |
W ≤518 |
|
Standby power |
≤0.5 W |
|
|
Input power |
100V ~240 V,50-60Hz |
|
|
Working environment |
Working temperature |
-10℃-50℃ |
|
Working humidity |
10%-90% |
|
|
Storage temperature |
-20℃-60℃ |
|
|
Storage humidity |
10%-90% |
|
|
Other |
Packing methods |
Anti-impact Cattle Carvalon Cartons |
|
Toughened glass |
4 mm fully toughened glass, anti-scratch, anti-impact, anti-crack, |
|
|
Anti-glare glass |
||
|
Machine accessories |
Power cord |
Article 1 |
|
Remote control |
1 x |
|
|
Handwriting |
2 |
|
|
Retractable whip |
1 branch |
|
|
Certificate |
1 |
|
|
Warranty card |
1 |
|
Other functions |
Audio and video format |
3GP, 3G2, AVI, FLV, F4V, OGG, MP4, MOV, TS, M2TS, M2T, MTS, TP, TRP, M2P, MKV, |
|
VOB, DAT, M4V, ASF, WEBM, 3GP, MP3, WAV, WMA, MPEG, PCM |
||
|
Video coding protocol |
H264, H265, MPEG2, VC1, VP6, VP8, VP9, MVC, DIVX, MJPEG, AVS, AVS+ |
|
|
Audio Decoding Protocol |
WMA, MP3, WAV, AAC, AC3, EAC3, Vorbis, FLAC, APE, TrueHD, DRA, DTS, DTSHD |
|
|
Subtitle and caption format |
srt, sub, smi, sami, ssa, aas, lrc, idx+sub, PGS, MKV Internal subtitle, TS Internal |
|
|
subtitle (dvb subtitle), VOBSub (idx +sub) |
||
|
Writing fluently |
Smooth and smooth writing experience, touch delay <12 MS |
|
|
Touch menu |
The menu, signal source switch, sound, brightness, TV all function control are realized by hand gesture to screen touch menu menu of the screen (touch menu) |
|
|
Intelligent signal switching |
The device will automatically identify and switch to the corresponding video, audio, touch synchronous switch to the corresponding signal source channel |
|
|
Temperature detection function |
Display the internal temperature of the machine on the menu interface of the integrated machine, and automatically shut down when the internal malfunction of the machine exceeds the standard |
|
|
Gesture Wipe Function |
Wipe the text and patterns on the screen with gestures |
|
|
Two-way control function |
Touch the screen to control the computer, convenient and fast |
|
|
Wireless screen function |
You can project the contents of your computer onto the screen without inserting wires |
|
|
Zoom, zoom, drag |
Using multi-touch technology, arbitrarily change the size of the picture, move the position of the picture at will |
|
|
Structural dimensions |
Free of packaging (mm) |
2261.6×1351×103 mm |
|
Packaged (mm) |
2463.6×1648×260.4 mm |
|
|
Total weight |
Net |
130Kg |
|
Gross |
166Kg±1.5 Kg( Heavy carton/wood board) |
|
|
Audio parameters |
Audio Power |
10W ×2, stereo surround sound |
|
Camera/Microphone (optional) |
4K 384 0*2160 resolution |
Support |
|
8.5 million pixels |
Support |
|
|
10m pick-up |
Support |
|
|
5X Digital Zoom |
Support |
|
Power supply parameters |
Rated power consumption |
W ≤518 |
|
Standby power |
≤0.5 W |
|
|
Input power |
100V ~240 V,50-60Hz |
|
|
Working environment |
Working temperature |
-10℃-50℃ |
|
Working humidity |
10%-90% |
|
|
Storage temperature |
-20℃-60℃ |
|
|
Storage humidity |
10%-90% |
|
|
Other |
Packing methods |
Anti-impact Cattle Carvalon Cartons |
|
Toughened glass |
4 mm fully toughened glass, anti-scratch, anti-impact, anti-crack, |
|
|
Anti-glare glass |
||
|
Machine accessories |
Power cord |
Article 1 |
|
Remote control |
1 x |
|
|
Handwriting |
2 |
|
|
Retractable whip |
1 branch |
|
|
Certificate |
1 |
|
|
Warranty card |
1 |
* The above specifications are for reference only, and can be customized according to customer's technical requirements

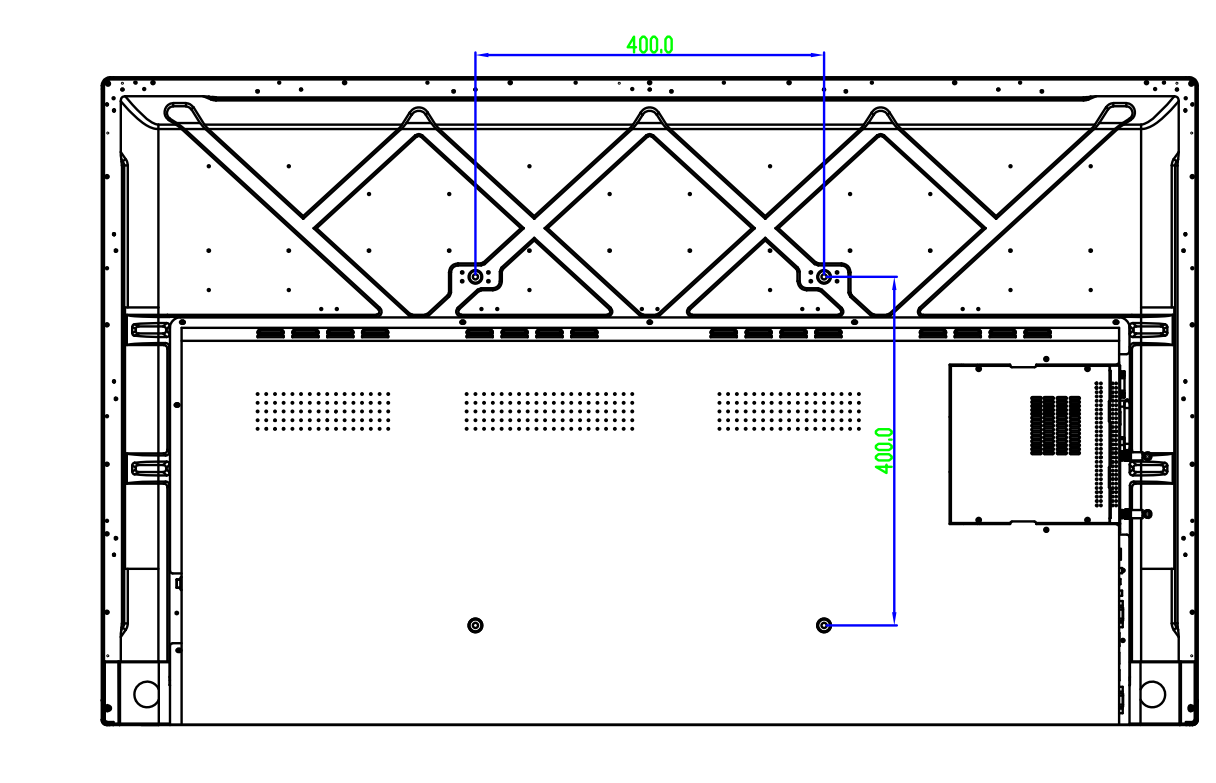

Product view
55inch
65inch
75inch

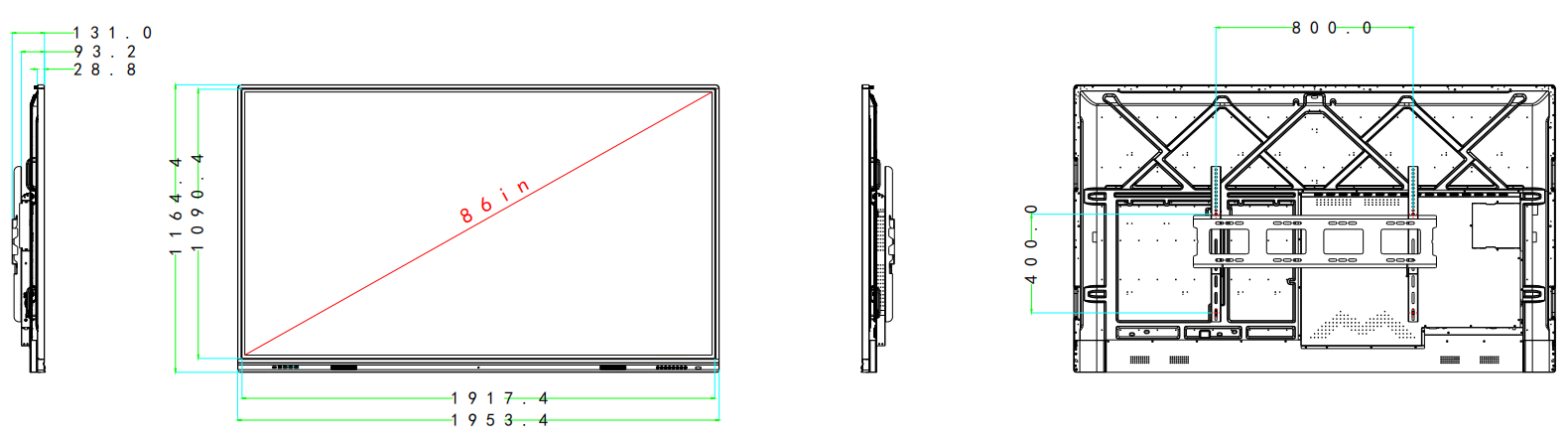

86inch

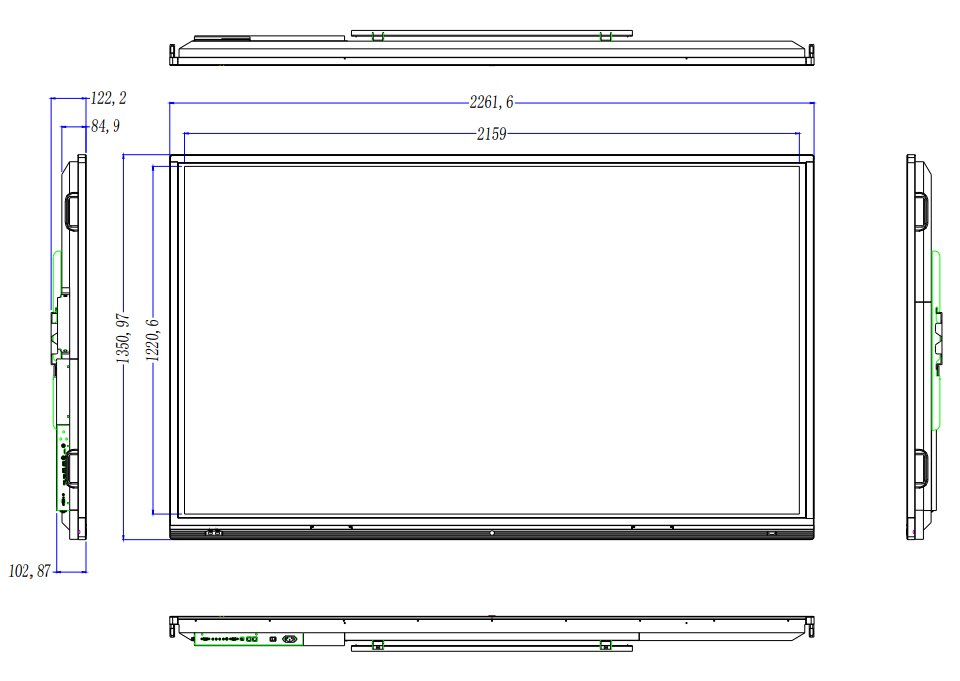

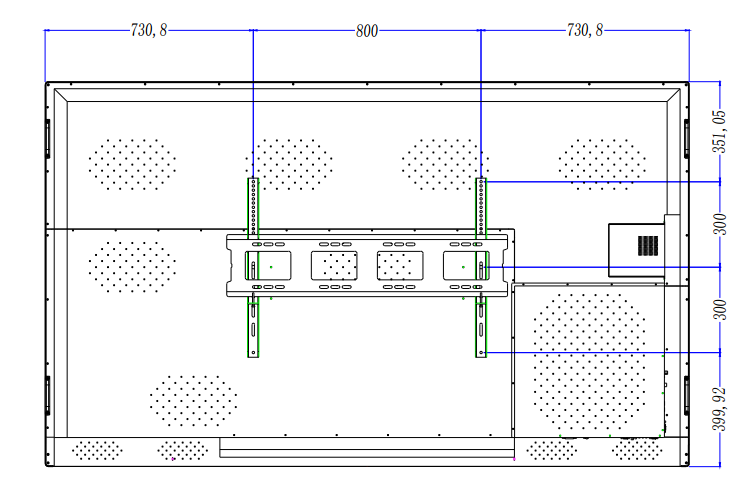

98inch
Effect picture
Copyright: Shenzhen Heijin Industrial Manufacturing Co., Ltd. | educational all in one machine manufacturer, manufacturer, supplier, wholesale price, how much to order 粤ICP备19075530号 Technical support: wanchuang.com
