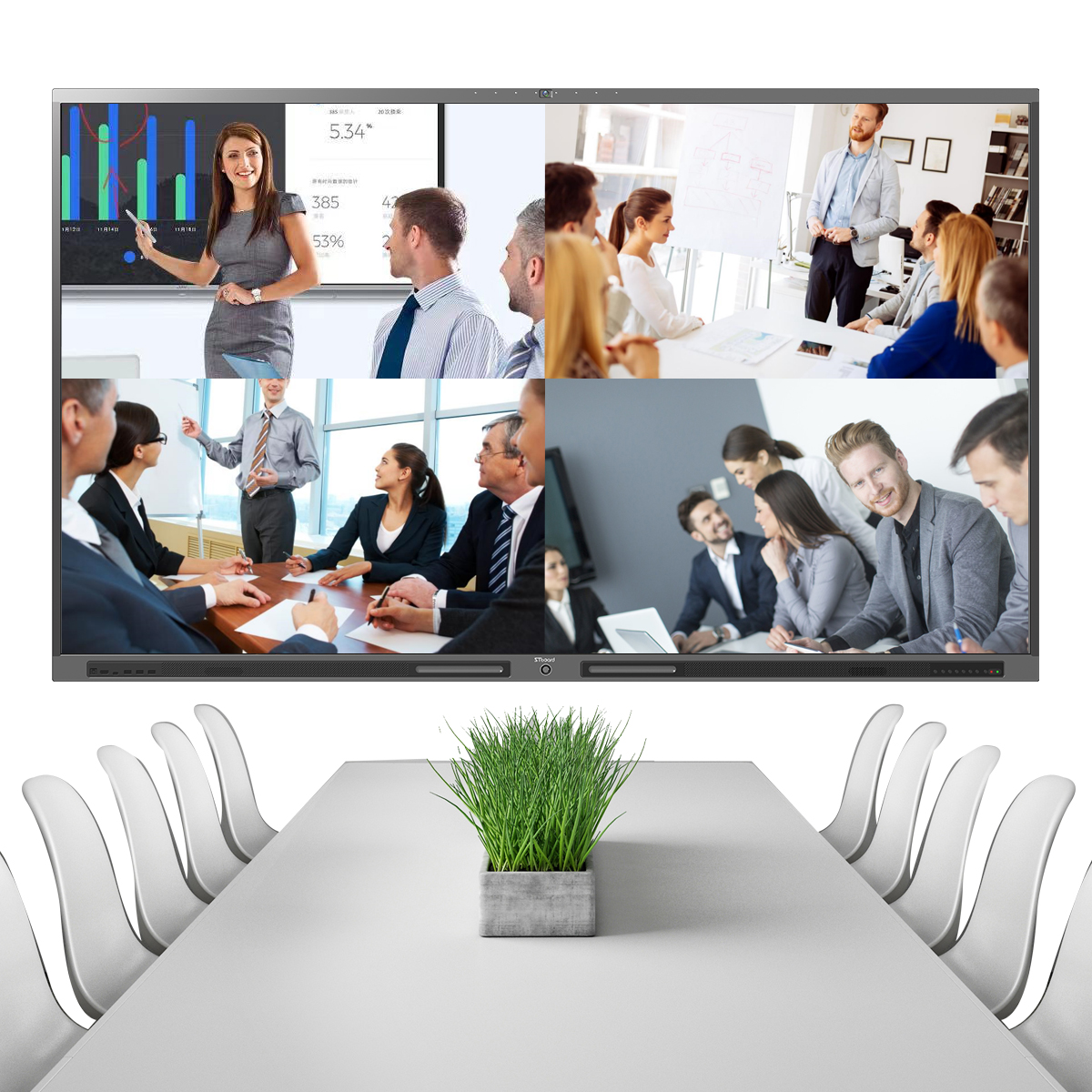

HJ-TM86M、 HJ-TM98MInteractive touch panel



Product parameters:

HJ-TM86M、 HJ-TM98M

Online consultation Tel:+86-0755-21002123



HJ-TM86M、 HJ-TM98M Basic parameters
screen size 86“/ 98”
Bare metal size mm 1955.4x1179.7x87.8m(86”)
2212.3x1315.8x93.6mm(98")
Packaging size mm 2080x200x1300mm(86”)
2380*250*1470mm(98")
Net weight KG                                           66 ±1kg(86”)                                          92 ±1kg(98")
Gross weight KG                                           89 ±1kg(86”)                                           127 ±1kg(98")
Touch Screen Writing Tools Fingers, writing pens, non-transparent hard objects
VESA hole size                                      H600*V600mm(86")                                    H400*V800mm(98")

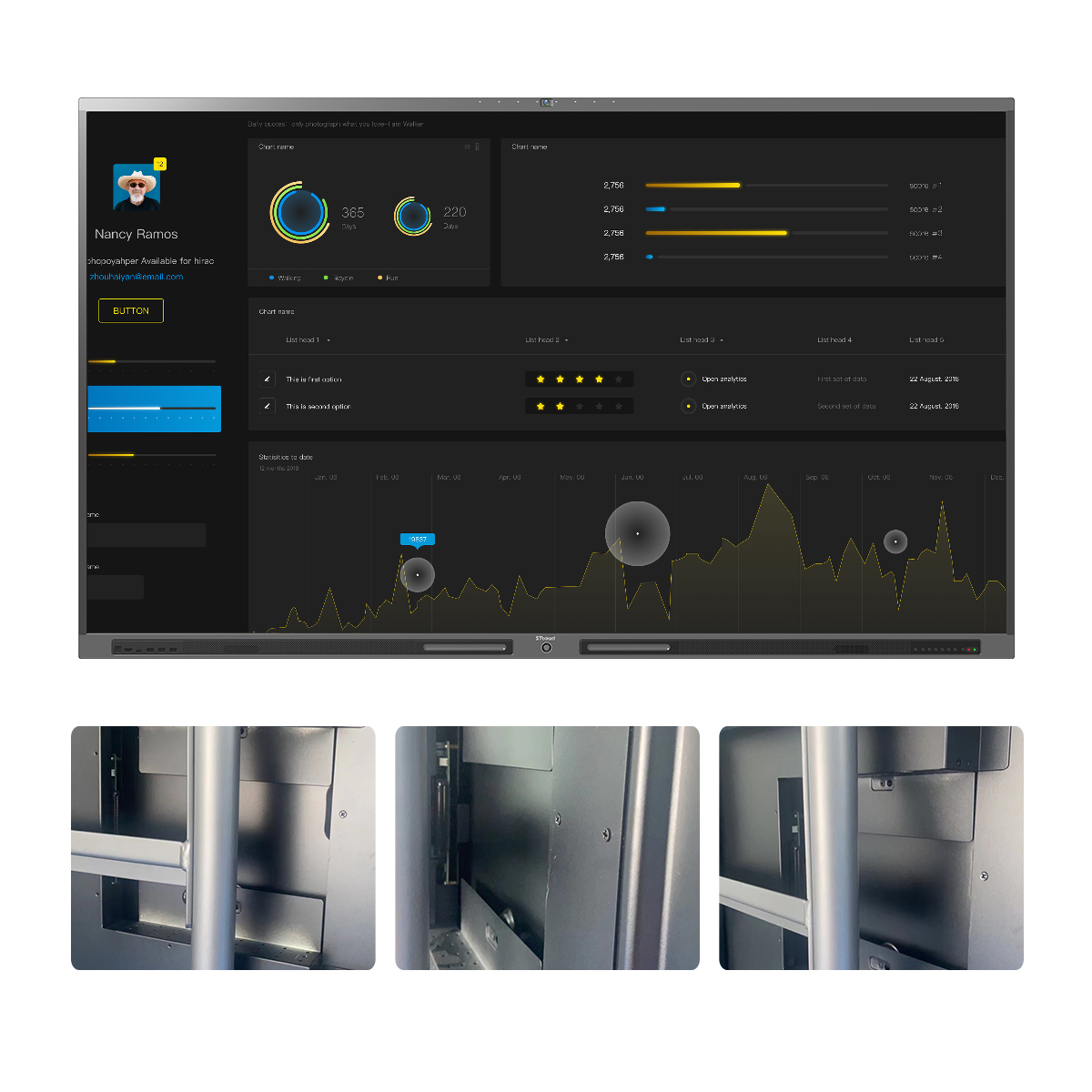

Installation Method (optional) with wall mount
Color Grey+Black
Bonding technology Zero Bonding
Panel parameters
Backlight type LED
Display size mm 1895.2x1065.6mm(86") 2158.8x1215mm(98")
physical resolution 3840 * 2160(4k@60hz)
Brightness 400cd/㎡
Dynamic contrast (DC) 1200:1
Response time 8~10ms (Typ.)
pixel pitch 86":0.4935(W) x 0.4935(H)      98": 0.5622 (H) x 0.5622 (V
Bluetooth 5.0
Viewing angle H178°,V178°
screen ratio 16:9
Response Time (Typical) <8ms
Display Colors 10Bit, 16.7M
Cursor Speed 120points/s
Backlight life 50000h
Android configuration
motherboard T982
System properties system version Android 11.0
CPU
Quad-core ARM A55 1.9Ghz
GPU Mali-G52 MP2
DDR SIZE 4/8G Byte
eMMC Flash 32/128G Byte
OSD language Chinese、 English、Russian.vietnamese.etc.
Front ports

USB TOUCH B 3.0х1

HDMI IN х1

Type-C 3.0 (4K video/Touch/15w charging/USB flash identification) х1

USB3.0x3

Side ports

Audio out x1

RS232x1

Earphone x1

RJ45 IN x1

RJ45 OUTx1

SPDIF OUT x1

YPBPR x1

Audio in x1

VGA in x1

VGA Audio in x1

HDMI OUT x1


Bottom interface

MIC INx1

RS232x1

Earphone x1

RJ45 IN x1

RJ45 OUTx1

SPDIF OUT x1

YPBPR x1

Audio in x1

Audio out x1

VGA in x1

VGA Audio in x1

HDMI OUT x1

sound
 Speaker Position  Front panel built-in x2
Frequency response L+R / 8Ω)of THD+N≤10%@1KHz
Speaker Rated Impedance 8Ωx2
Speaker Max.Power Output 15wx2
touch parameter
touch technology Infrared touch
touch points 20 points under Android& Windows
grass Tempered 4mm (physically tempered Mohs 7 explosion-proof, anti-glare, etching needs special customization)
glass transmittance >92%
touch resolution 32768(W)×32768(D)
touch accuracy ±1mm
Response time 5ms
Input fingers or non-transparent objects
Palm erase function YES
output form Coordinate output
Theoretical Clicks unlimited
minimal touch Single point: Ø3mm; Multi-point: Ø8mm
light resistance Incandescent lamp (220V, 100W), the illuminance of sunlight at a vertical distance of more than 350mm reaches 90000Lux
Electrical properties Interface Type Type A USB male
Communication type USB
Power supply USB (USB powered)
voltage DC 5.0V±5%
Working current <300mA
Packing List
remote control 1
power cable 1
Whiteboard pen 2
HDMI cable Optional
USB cable Optional
VGA cable /
manual 1
Warranty Card 1
Quick Action Guide /
certificate 1
wall mount 1

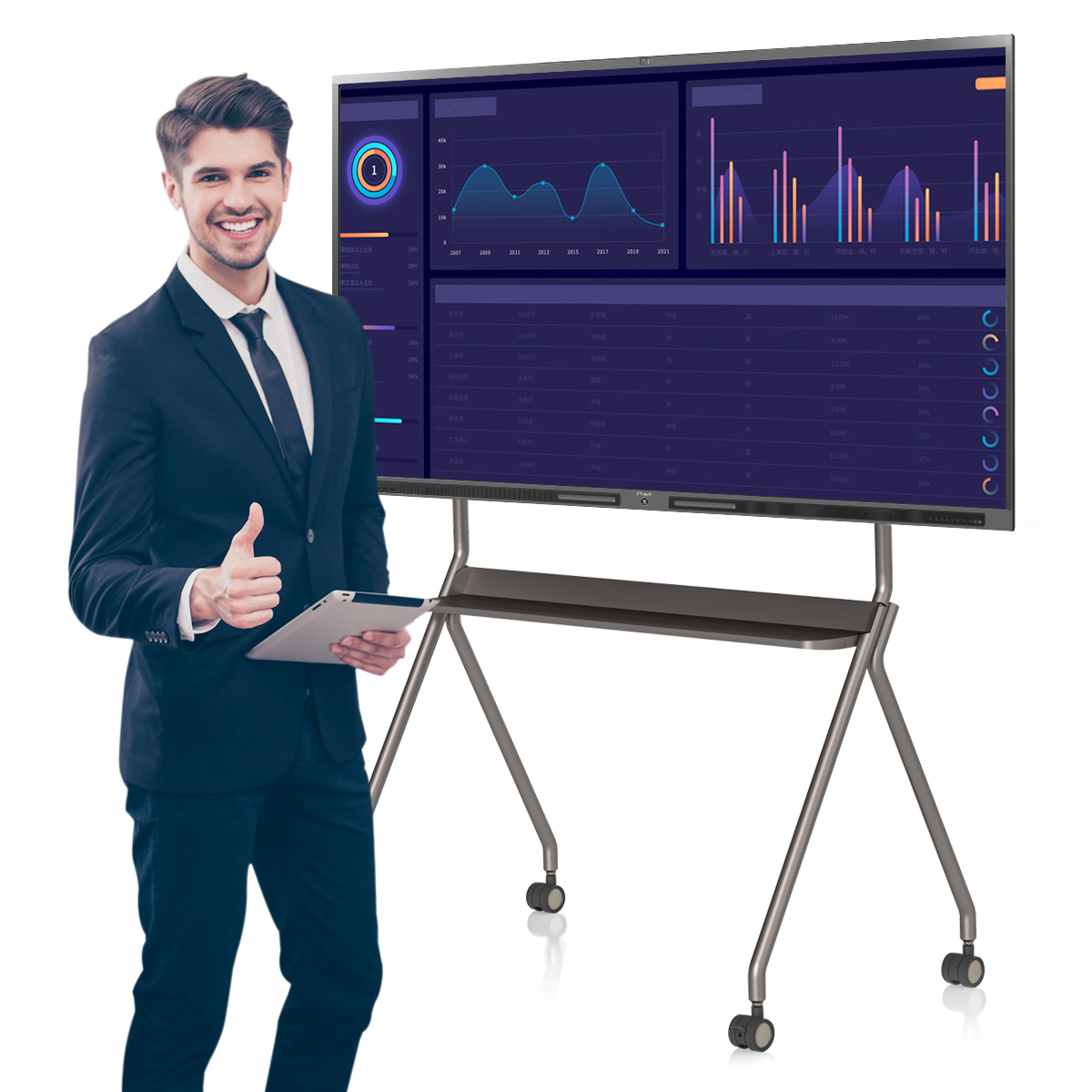

mobile stand Optional
CD /
pointer Optional
large and small pen Optional
Use environment
Operating temperature 5℃~45℃,20%~80%
Storage temperature -15℃~60℃,recommend 5℃~45℃
Relative humidity ≤80%
maximum usage time 18h/hours
Power information
Input voltage AC 180-240V 50/60Hz
Maximum power                                               86":<320W                                               98":<480W
drive voltage 5V/12V
Standby power <0.5W

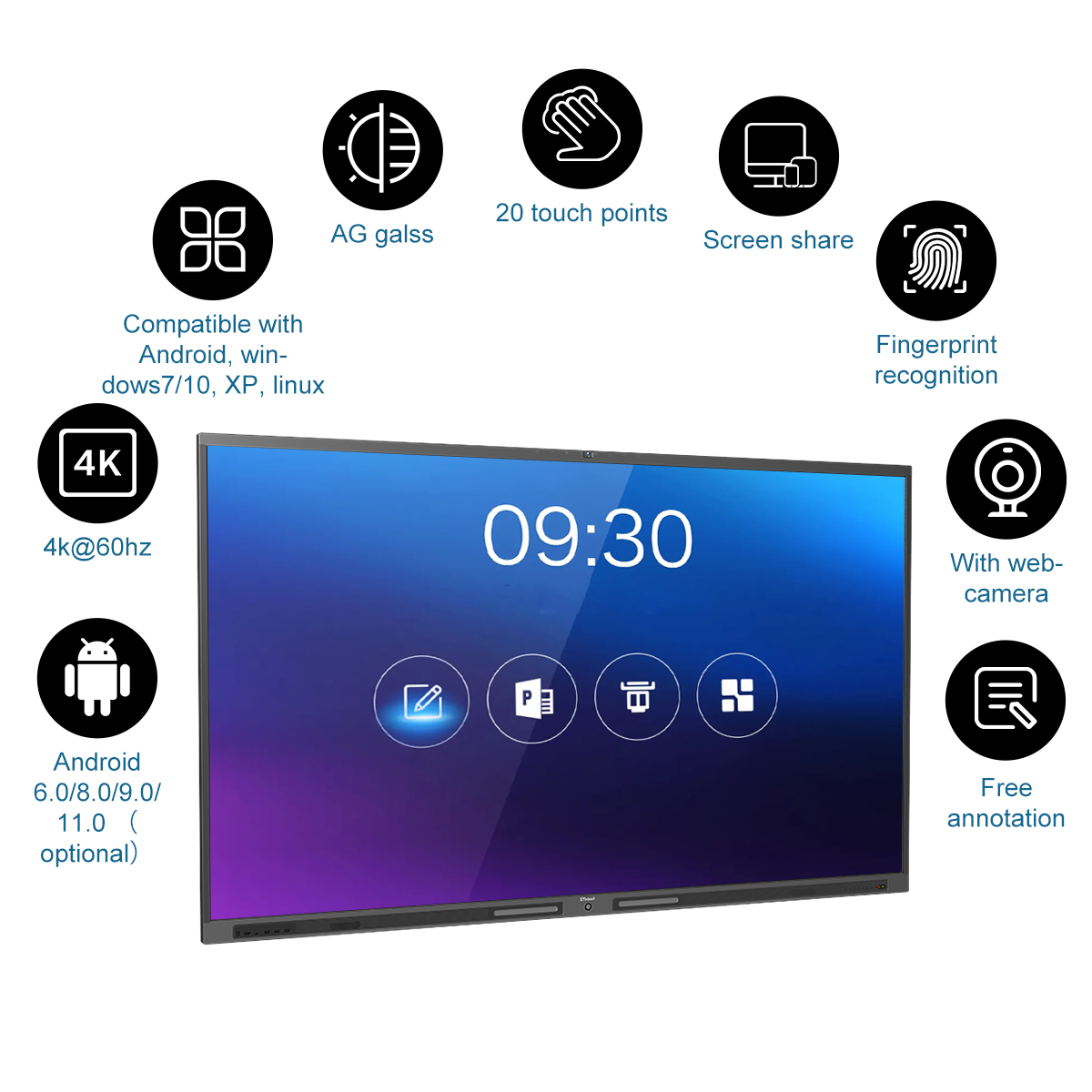

Part of the function
One key switch Android / PC independent switch
Screen share
Eshare support
Dual 5G WiFi  Support (5G hotspot)
Intelligent electronic whiteboard support
Office Software support

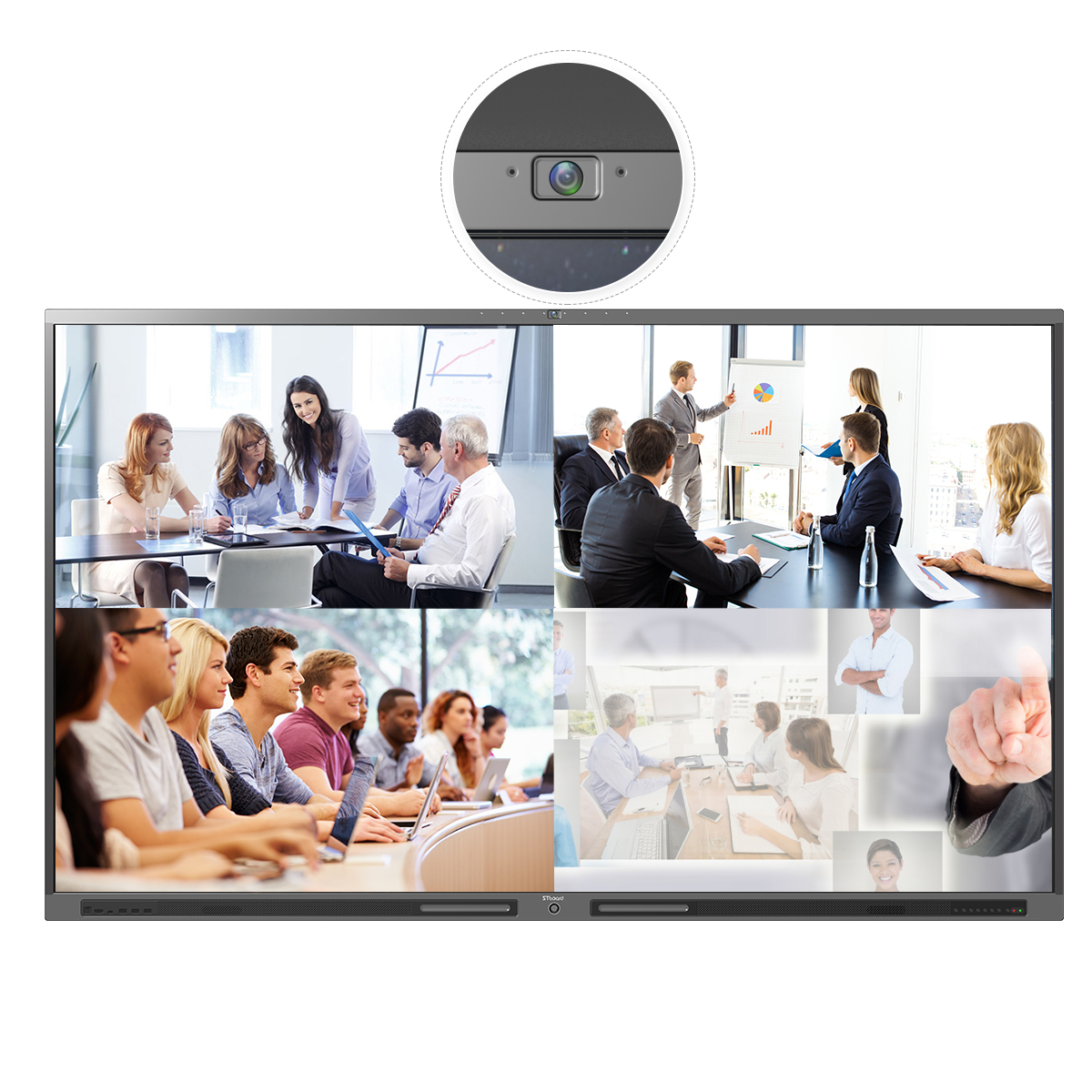

camera built-in 13mp camra ,8mic
fingerprint Optional
Hearing aid Optional
photosensitive Optional
Warranty
Warranty Years 3 Years
Certifications
RoHS, CE,FCC,CCC, Energy Star 8
